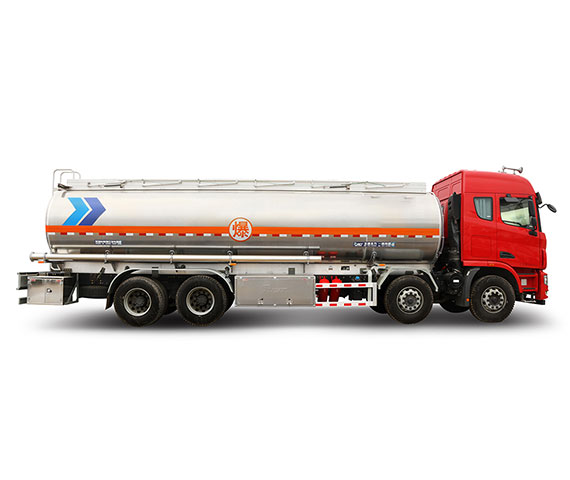

The fuel tank truck is also called mobile fuel truck, oil loading truck, oil refueling truck, etc. It is mainly used for storage and transport of oil. According to different needs, fuel tank truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station. Actually it can be called as the mobile filling station.
Main Parameter:
| Curb Weight(Kg) | 10500 |
| Oversize Dimension(mm) | 10480*2550*3650 |
| Chassis | Shacman, Howo, Faw, or other |
| Tank Volume(m³) | 25 |
| Tank Thickness(mm) | 5 |
| Tank Body Material | 304 Stainless Steel/Q235 Carbon Steel/Aluminum Alloy |
| Compartment | 3 pcs, or accoring to need |
| Anti wave plate | yes |
| Operating Ambient Temperature(℃) | -20~45 |
| Manufacturing standard | National/European standard |
| Emergency shutoff valve | yes |
| Oil gas recovery unit | yes |
| Anti-overflow alarm device | yes |
| Fuel loading method | Bottom filling |
| Gear oil pump flow(m³/h) | 60 |
| Maximum Speed(km/h) | 80 |
