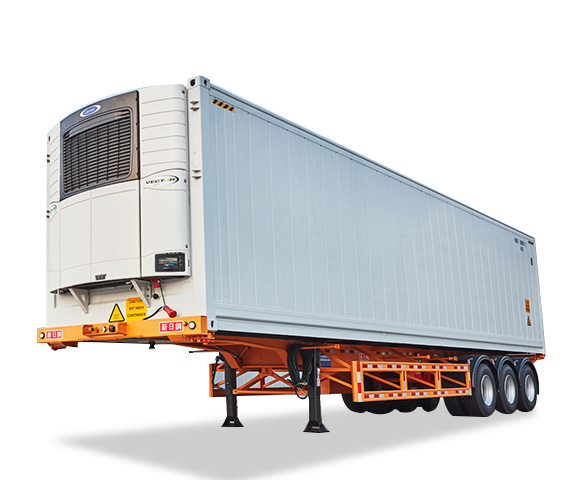

Products feature:
1, High Strength: The body structure adopts a locking and riveting combination process, with high tensile strength. The floor uses high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.
2, High Insulation: Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.
3, Light weighting: The body weight of the container is more than 500 kg lighter than a steel box, helping to carry more goods or save fuel.
4, Cold Air Circulation: The floor uses a Great Wall-type ventilation guide rail, in combination with vertical ventilation slots on the side plates and ventilation bars on the door panels, for efficient air circulation inside the container and uniform temperature distribution, safer for transporting fruits, vegetables, and flowers.
5, Green Environmental Protection: The container body is made entirely of food-grade materials, safer for transporting goods.
Products parameter:
Main Parameter
Description
Process Standard
Foaming Process
Inner/Outer Skin Material
Food-grade Thermoplastic/Pre-painted Aluminum Sheet
Insulation Material
Polyurethane
Vehicle Standard
Single-tire Refrigerated Semi-trailer/Dual-tire Refrigerated Semi-trailer
Total Length（mm）
12500/13600
Total Width（mm）
2600
Total Height（mm）
4000
Internal Length (mm)
13413/13433
Internal Width (mm)
2426/2446/2466
Internal Height (mm)
2440/2490/2540/2600
Internal Volume（m³）
80~82/80~86
Insulation Panel Top（mm）
100
Insulation Panel Sides（mm）
70
Insulation Panel Front（mm）
100
Insulation Panel Back（mm）
80
Insulation Panel Bottom（mm）
200（35mm Castle-Type Aluminum Floor）
Bottom Skin Material
Thermoplastic Sheet
Bottom Inner Structure
High-Strength T6 Castle-Type Ventilated Aluminum Floor (Approximately 35mm)
Wear Plate
High-Strength Aluminum Profile (Approximately 300mm High)
Bottom Drainage Hole
Standard Configuration, Two Each Front and Back
Under-mount Frame
Full Load-bearing Structure without Chassis Beam/With Chassis Beam Structure
Side Protection
Aluminum Alloy Flip-up
Axle
3*13T, Fuwa or STVG brand
Suspension
Air Suspension/mechanical Suspension
Tires
11R22.5/12R22.5
Kingpin
JOST 2 or 3.5 inch
Landing leg
JOST or Fuwa 28T
Rear Bumper
High-strength Carbon Steel Sprayed Paint
Tool Box
Aluminum Alloy Toolbox/1 Piece
Spare Tire Mount
2 Sets (1 Truck 1 Trailer)
Rear Door Ladder
Pull-out Ladder (Zinc-plated Carbon Steel)
