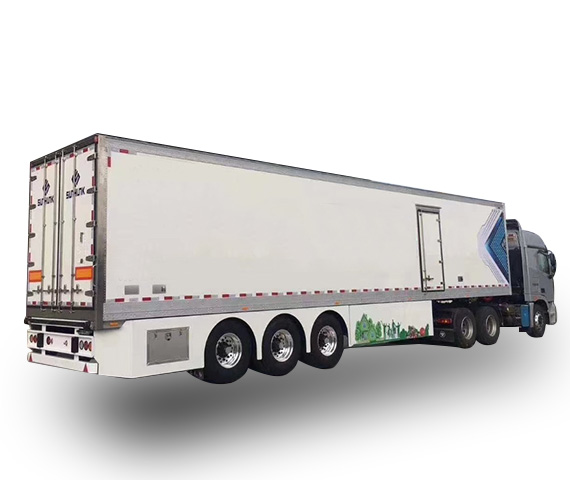

Products feature:

1, High Strength: The body structure adopts a locking and riveting combination process, with high tensile strength. The floor uses high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

2, High Insulation: Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

3, Light weighting: The body weight of the container is more than 500 kg lighter than a steel box, helping to carry more goods or save fuel.

4, Cold Air Circulation: The floor uses a Great Wall-type ventilation guide rail, in combination with vertical ventilation slots on the side plates and ventilation bars on the door panels, for efficient air circulation inside the container and uniform temperature distribution, safer for transporting fruits, vegetables, and flowers.

5, Green Environmental Protection: The container body is made entirely of food-grade materials, safer for transporting goods.

Products parameter:

DIMENSIONS:

Overall Length 14000mm

Overall Width 2600mm

Overall Height 4150mm

Interior Length 12324mm

Interior Width (Liner to Liner) 2480mm

Interior Height 2665mm

Coupler Height 1200mm

Internal volume 81m3



INSULATION PACKAGE:

Blowing Agent LBA (Green & Environmental)

Sidewall Thickness 60mm

Roof Thickness 80mm

Nose Thickness 100mm

Rear Door Thickness 76mm

Floor Thickness 199mm(insulation 64mm)



SIDEWALLS

Side Sheets 1.0mm thick Pre-painted white Aluminum sheet, rivet design


ROOF

Roof Skin 1.0mm thick Pre-painted white Aluminum sheet


REAR DOOR

Rear Door Type Swing door

Rear Door Out Skin 1.0mm thick Pre-painted white Aluminum sheet

Door Lock Rods 1 piece of stainless steel door lock bars on each door

Hinges 4 pieces. Heavy duty stainless steel hinges on each door


REFRIGERATING SYSTEM

Thermo King SLX400/CARRIER


TRAILER CHASSIS

Axle & Suspension Refrigerating system:US Thermo King SLX400,Mechanicalsuspension

Chassis frame Made of high tensile strength steel

Kingpin Jost 90mm Kingpin or equivalent

Landing Gear JOST

Brake System WABCO

Tire 12R22.5 China famous Brand
