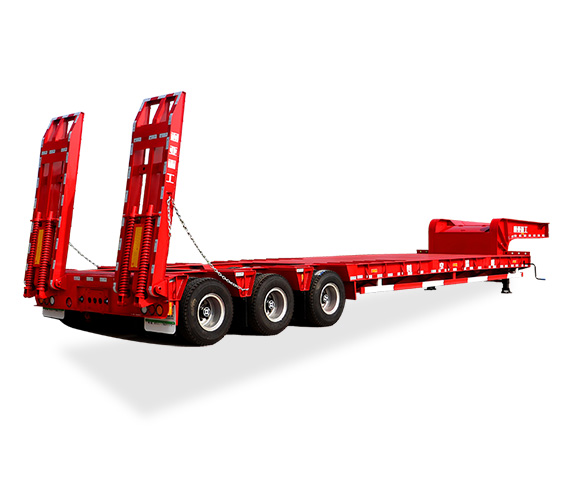

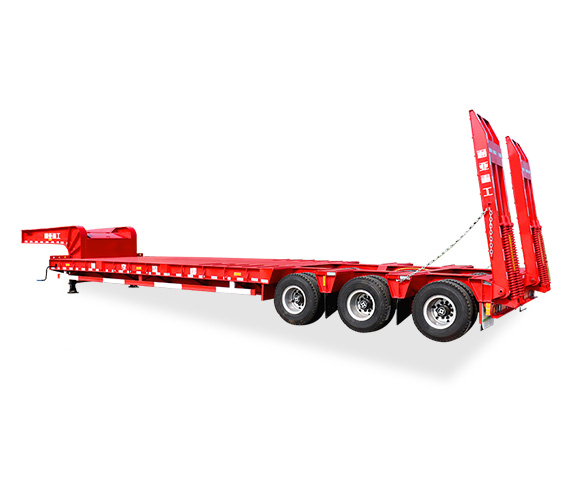

Low bed semi trailer mainly transport heavy vehicles, mechanical equipment and non-rotating cargo, like tractors, loaders, excavators, bulldozers and special vehicles. With stability, safety, strong cargo capacity, transportation is very convenient. We have many types of low bed semi trailer with a load capacity range from 30 to 200 ton, which can also be customized according to customers.
Products features:
1. Strong trailer frame was made from Q345B/Q550/Q690/HG60. The advantages of Q550/Q690/HG60 are high strength, strong bearing capacity and 2-3 times of other materials.
2. It has flat type, concave beams type and tyre appear type.The front longitudinal adopts flat type or goose neck type. It’s chassis is ladder type, longitudinal beam section is H-shaped. It has good rigidity and high strength.
3. Heavy duty type suspension: Mechanical, rigid suspension to meet your transportation demand.
4. Strong low bed trailer ramp, leaf spring type, folding hydraulic type optional
5. Two pieces spare tire carriers, water tank, fuel tank, etc, are optional accessories which build modern transportation.
6, Multiple axles can be customized to meet the needs of over-sized cargo transportationMain parameter:
Items
Specifications
Tare Weight
7T - 13T
Loading Capacity
30T - 150T
Axle weight load
3* 13T/ 16T/ 20T
Material is Q345B Steel;
Height: 450mm-520mm, upper plate is 14mm-25mm;
Main beam
middle plate is 8mm-12mm;
down plate is 16mm-25mm;
Side beam
16mm or 25mm steel channel (Material: Q235steel)
King Pin
2"or 3.5"traction pin
Dimensions(L*W*H)
12500-18000 x 2500-3000 x1550-1650mm (adjustable as request)
Floor
3mm/ 4mm diamond steel plate
Ladder
Mechanical Spring/Hydraulic
Gooseneck
optional
Suspension type
Mechanical or Air suspension
Leaf Spring
90(W)mm*13(Thickness)mm*10 layers
100(W)mm*12(Thickness)mm*12 layers
Axle
2/3/4 axles, FUWA, BPW or other optional brand
Wheel Rim
9.00-22.5
Wheelbase
8180+1310+1310 (mm)
Tire
Specification: 12.00R22.5 Vacuum Tire
Number of Tire: 8 or12 pieces
Brake Chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);
Two pieces of 45L air tanks;
Brake system
Dual Line Brake system, ABS is optional
Tool box
1 set of standard tool box Brand
Light
LED light Tail lamp with turn signal, brake light & reflector, side lamp etc
Painting
Sand blasting to clean rust completely;
First coat of anticorrosive prime, twice coats of final paint.
Spare Tire Carriers
1 or 2 pieces
Twist lock
4/8/12 pcs
Landing gear
28T Heavy duty landing gear
Electronic system
24v, 7core socket
