Vehicle feature:

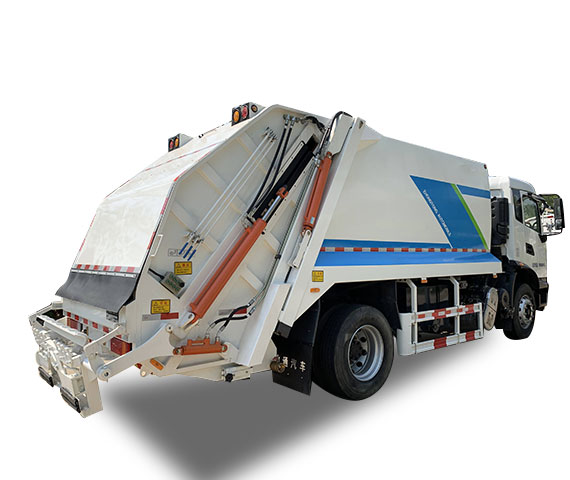

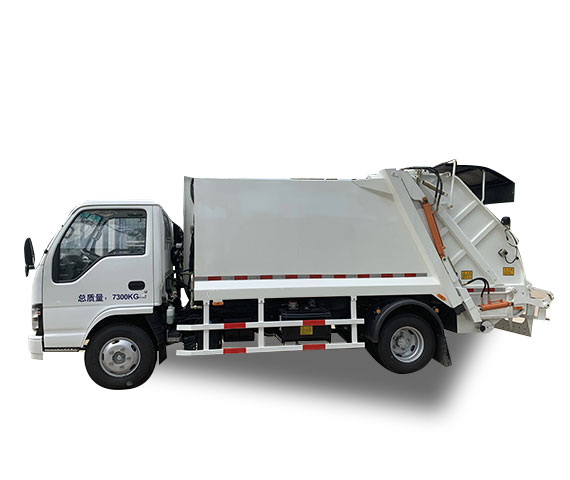

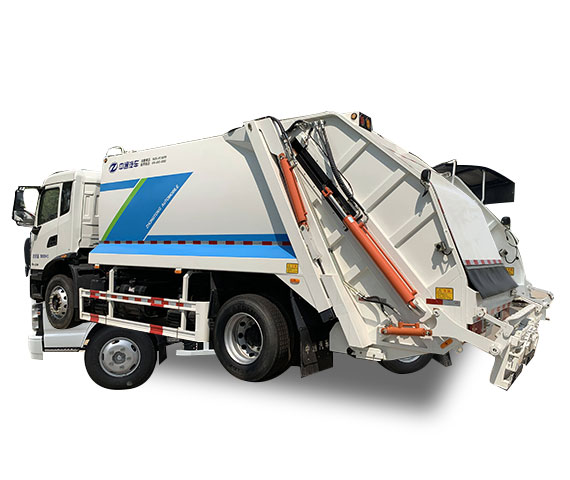

Compressed garbage truck is mainly used fot collecting, compressong and transporting urban domestic garbage, also can be used for transporting some light throwing, scattered industrial and agricultural garbage.
Performance characteristics:
1, High strength contianer:
The container are the arc flow linear modeling, simple and beautiful, strong resistance and deformation, good structual reliability.
2, High airtightness
The whole contianer is full sealing design, with a central sewage pipe, sub sewage tank, to solve the problem of secondary pollution.
3, High compression ratio
Adopting two-way compression mode, the comprssion ration reaches more than 1:6.
4, Humanized operation design
When the filler is lifted up, the scraper can carru out a secondary clearing to ensure that is no residual waste when dischaging
5, Automatic operation
Intelligent control system, adopts imported CAN design, modual structure, high degree of automation
6, Dual insurance system
The operation system has a dual electronic and manual control, which can greatly guarantees and inproves the utilization.
Main specification
Product Name
8cbm compressed garbage truck
Chassis
Shacman 4*2 H3000
Vehicle Main Dimensions
L x W x H(mm)
7250x2490x3300
Wheel base (mm)
3800
Wheel track (front/rear) (mm)
2022/1830
Approach/Departure angle(°)
16/23
Engine
Brand
WEICHAI
Model
WP6.210E32
Horse Power(HP)
210HP
Emission standard
Euro 2
Cabin
One sleeping bed，with A/C
Front axle
MAN 7.5T
Rear Axle
MAN 13T, ratio=4.769
Gearbox
8JS118+QH50，8F& 1R
Clutch
φ430 diaphragm clutch
Steering Gear
Integral circulation ball power steering
Tire
12.00R20, 7 pcs
Fuel tank
400 Aluminum alloy
Usage function
Pre-compressor Volume (m³): ≥8
An loads trash operating time (s:) ≤16
one filling cycle time (s:) ≤30
An discharge trash operating time (s):≤30
Filler lifting time (s): ≤15
Filler volume (m3): ≥1.5
Hydraulic system pressure: 20MPa
Volume of sewage water tank(front and back) 300+200
Operate type: Manual
Material: high tensile steel plate B520JJ, bottom 5mm, side 4mm
